Aardman Academy - Stop Motion 1 Course
(Includes a 5% Discount)

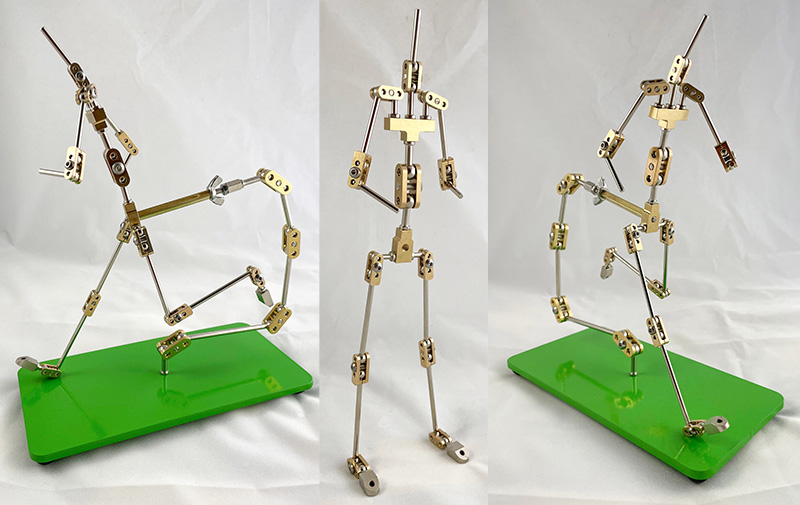

Aardman Academy CUZIN X Armature and M4 Rig Assembly

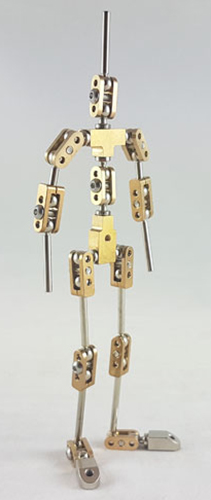

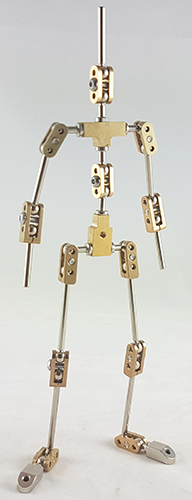

Aardman Academy CUZIN X - Key Features
Overall Height 246.5mm Height to Shoulders 208.0mm

6mm Diameter Ball Link Plate Assembly: Neck, Shoulders & Ankles
3mm Diameter Neck, Arm and Leg Limb Assemblies
M4 Brass Complex Shoulder Block
M4 Brass Hip Block with M4 Rigging Point
9mm Diameter Ball Link Plate Assembly - Backbone
4mm Diameter Backbone
6mm Diameter Ball Hinge Link Plate Assemblies: Elbows; Hips; Knees
Neck, Shoulders & Elbow Link Plates 2mm thick

Hips, Knees & Ankle Link Plates 3mm thick for extra strength

Nickel Plated Steel Feet with Magnetic & M3 Tie Down
Nickel Plated Steel Limbs with Integrated Balls
3mm Diameter Head/Forearms compatible with K&S#8152
Stainless Steel M3/M4 Link Plate Screws
Fully Assembled using Loctite 270
1 x 75mm Rigging Stud Assembly
2 x 50mm Standard Tie Down Assemblies
2 x 12mm Stainless Steel Tie Down Screws
2mm & 2.5mm Allen Keys

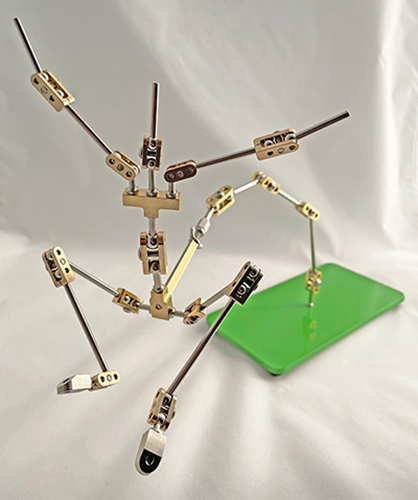

M4 Large Rig Assembly - Key Features

200mm x 100mm x 5mm Steel Baseplate
Powder Coated RAL6018 (Green)
4 x Rubber Feet
9mm Diameter Brass Link Plate Assemblies
Stainless Steel M4 Link Plate Screws

Nickel Plated Steel Connecting Arms with Integrated Balls
75mm / 50mm / 35mm Connecting Arms
M4 Stainless Steel Rigging Stud
50mm K&S #8153 Square Brass Tube
Fully Assembled using Loctite 270
2.5mm Allen Key

Shipping to the UK
(£20.00)
Shipping to the Rest of the World (RoW)
(£45.00)

Aardman CUZIN X Armature + M4 Large Rig Assembly

Discounted Price - £183.35 + UK Shipping

Aardman CUZIN X Armature + M4 Large Rig Assembly

Discounted Price - £183.35 + RoW Shipping
